Standard
- Single channel
- 5 mm/h
- Dual channel
- 2.5 mm/h
Single-printhead desktop precision wax jetting system

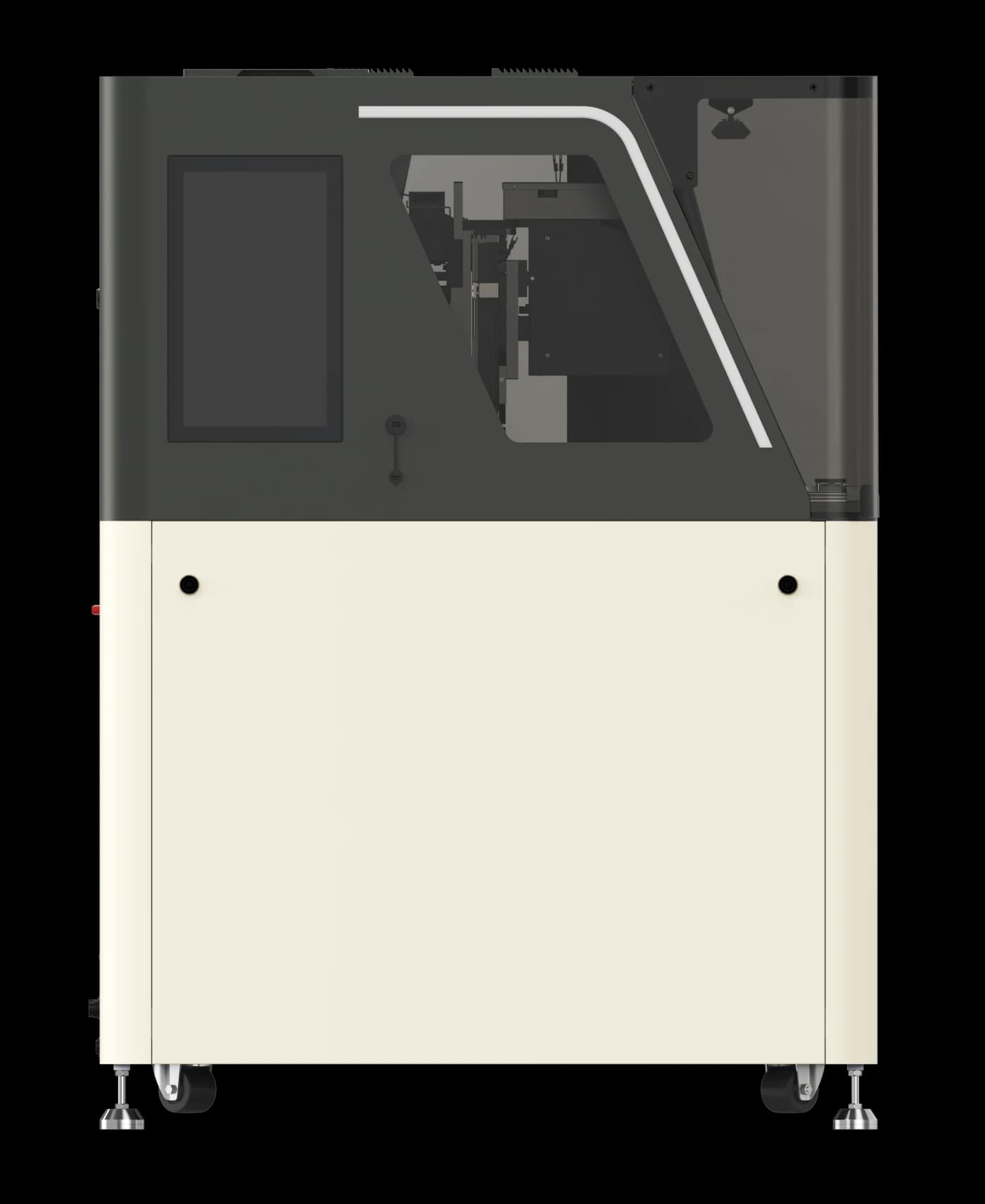

Cylanco-Gen1
Single-printhead desktop precision wax jetting system
Configuration
Choose the pace your line needs.
The standard and high-speed configurations share the same precision platform; select the throughput tier that fits your production plan.
High-Speed
- Single channel
- 7.2 mm/h
- Dual channel
- 3.6 mm/h
Specifications
System data sheet.
- Printing technology
- MultiJet Printing (MJP)
- Build volume
- 235 × 138 × 110 mm
- Resolution
- 2900 × 2900 × 1700 DPI
- Layer thickness
- 15 μm
- Dimensional accuracy
- ±0.04 mm / 20 mm
- Structural wax utilization
- ≥57%
- Standard print speed
- Single channel 5 mm/h · Dual channel 2.5 mm/h
- High-speed print speed
- Single channel 7.2 mm/h · Dual channel 3.6 mm/h
- Slicing software
- WaxJetPrint
- Input formats
- STL, SLC
- Connectivity
- 10/100/1000 Ethernet, USB, optional Wi-Fi expansion
- Operating system
- Windows 10 / Windows 11 (64-bit)
- Power supply
- AC 100–250 V, 50–60 Hz, 2.2 kW
- Operating environment
- 18–26 °C · 30–70% RH
- Machine dimensions
- 1050 × 540 × 1430 mm
- Machine weight
- 120 kg
- Packaging dimensions
- 1400 × 700 × 1650 mm
- Packaging weight
- 145 kg
- Mobile base
- Included as standard
Overview
What this system is.
Cylanco-Gen1 is a single-printhead desktop precision wax jetting system for jewelry wax-pattern production. It combines a 235 × 138 × 110 mm build volume, 15 μm layers, and a dedicated mobile base in one compact workstation. Standard and high-speed configurations let teams match the system to their required production pace.
Applications
Where Gen1 fits.
Wax-pattern workflows that need fine detail in a compact workstation.
- Jewelry wax patterns
High-resolution wax patterns for investment-casting workflows.
- Precision-casting patterns
Detailed wax geometries for small components and complex surfaces.
- Design validation
STL and SLC workflows for physical review before casting.
- Small-batch, high-mix production
A compact workstation for varied jewelry pattern runs.
Buyer Fit
Built for a practical wax workflow.
Choose Gen1 when these production constraints define the brief.
- Limited floor space
A 1050 × 540 mm machine footprint with a dedicated mobile base included.
- Bring wax patterns in-house
Run WaxJetPrint with STL and SLC inputs inside your own workflow.
- Standard or high-speed throughput
Choose 5 / 2.5 mm/h or 7.2 / 3.6 mm/h single- and dual-channel speeds.
- Material efficiency matters
Published structural wax utilization is ≥57%.
Request
Plan your Gen1 workstation.
Share your wax-pattern mix, required output, and preference for the standard or high-speed configuration. We will map the right Gen1 setup with you.
