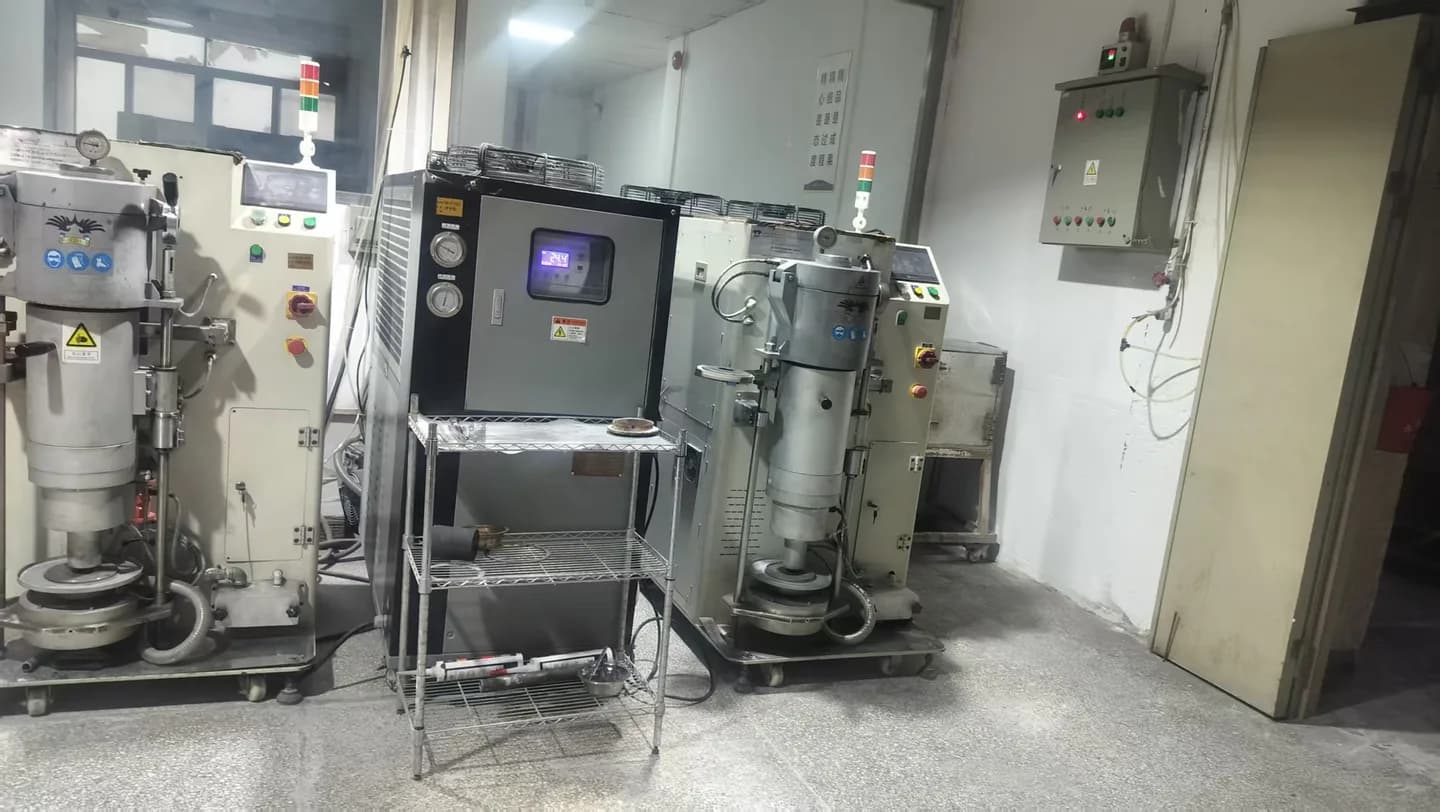

CXM-C18 Microcomputer Vacuum Pressure Casting Machine
Specially designed for filigree casting
System data sheet.
- Power supply
- 380V +/-10%, 50/60Hz, three-phase, 9.5kVA
- Vacuum pump range
- 0.1 to 10hPa
- Power
- 10kW
- Gas
- Argon
- Crucible capacity
- 242cc
- Maximum cast metal
- 150cc
- Temperature range
- Type K 1200C / Type R 1450C
- Maximum casting barrel size
- 5in x 9in
- Program memory
- 50 storage procedures
- Machine size
- 720x720x1200mm
- Weight
- 230kg
What this system is.
The CXM-C18 New represents a major upgrade in our medium-to-large capacity casting lineup. It incorporates advanced vacuum and pressure technologies to eliminate porosity and improve surface finish for gold and silver alloys.
Where it fits.
Typical scenarios this system is built to serve. Your specific line may overlap more than one.
- 18K / 14K Gold
Boutique and mid-volume gold casting where color uniformity and porosity rate are the bottleneck.
- Sterling Silver
Silver jewelry runs where oxidation control and clean pour geometry define the finishing workload downstream.
- Filigree & Fine Detail
Thin-wall pieces where the fill pressure, grain refinement, and surface fidelity have to be dialed in together.
- Rapid Recipe Switching
Lines running multiple alloys or SKU variants in the same day. Stored programs keep handoff-to-cast stable.
Defects this system addresses.
How the architecture of the machine maps onto the failure modes most common in jewelry casting production.
- Porosity & gas inclusions
Vacuum chamber evacuation before pour, with pressure-assisted fill and secondary vibration to collapse micro-voids before the front solidifies.
- Cold-shut & incomplete fill
Positive pressure during fill keeps the front moving through thin walls; recipe-locked thermal profile prevents the temperature drop that causes shorts.
- Color unevenness & segregation
In-chamber melting eliminates the melt-to-cast handoff step where most segregation and oxidation is introduced. One chamber, one thermal envelope.
- Batch-to-batch inconsistency
Stored programs lock the full sequence — temperature ramp, pressure window, vibration timing — so operator judgement isn't re-introduced each run.
- Operator-dependent quality
Digital recipe control removes the places where tacit know-how gets lost on a shift change. The workflow holds, even when the person changes.
Lead time, install, warranty.
- Lead Time
- 4–6 weeks from confirmed order and configuration lock.
- Packaging
- Export-grade wooden crate, rust-prevention wrap, shock-monitor seal on critical SKUs.
- Installation
- On-site commissioning by a Cylanco engineer available in most regions. Remote supervised install for straightforward configurations.
- Training
- Two-day operator + maintenance training — on-site or hybrid — included with flagship systems.
- Warranty
- 12 months on parts and labor. Lifetime technical support for recipe tuning and workflow questions.
- Spares
- Common wear parts kept in stock; airfreight available. Consumables quoted with the initial configuration.
Options & modules.
- Custom specification option in configure popup
- Optional shared accessories: water cooler / vacuum pump modules
- Water cooler module (optional)
- Vacuum pump module (optional)
Configure this system for your line.
Share alloy, throughput target, and facility context. We map the right configuration — not a generic machine list — and reply within 24 hours.
