Quick answer first
A South Asia jewelry workshop reported that after humid storage conditions, its 18K castings were still filling, but fine letters, edge definition, and claw tips looked soft during startup. The fastest recovery did not come from changing hardware or raising multiple parameters. Instead, the workshop stabilized output in the same shift by using a CXM-C20 startup gate: one investment lot, one alloy lot, one geometry family, two consecutive validation lots, and no machine-side changes until repeatability was confirmed.
The practical result from the service-side validation window was simple and usable: the workshop moved from repeated startup rejects to two consecutive accepted validation lots in the same shift, then froze a humid-day startup SOP for later shifts.
The real production question
“After humid storage, our first castings are filling but the logo edges and fine claw details are soft. We do not want to change hardware blindly. What should we lock first so we can recover today?”
This was a high-value question because the workshop was not facing a dramatic full-line breakdown. The risk was more expensive in a different way: borderline output, polishing rework, and unstable quality judgment between operators. In that situation, many teams lose half a shift because they change too many variables before they confirm whether the mold and startup handling are stable.
Workshop background

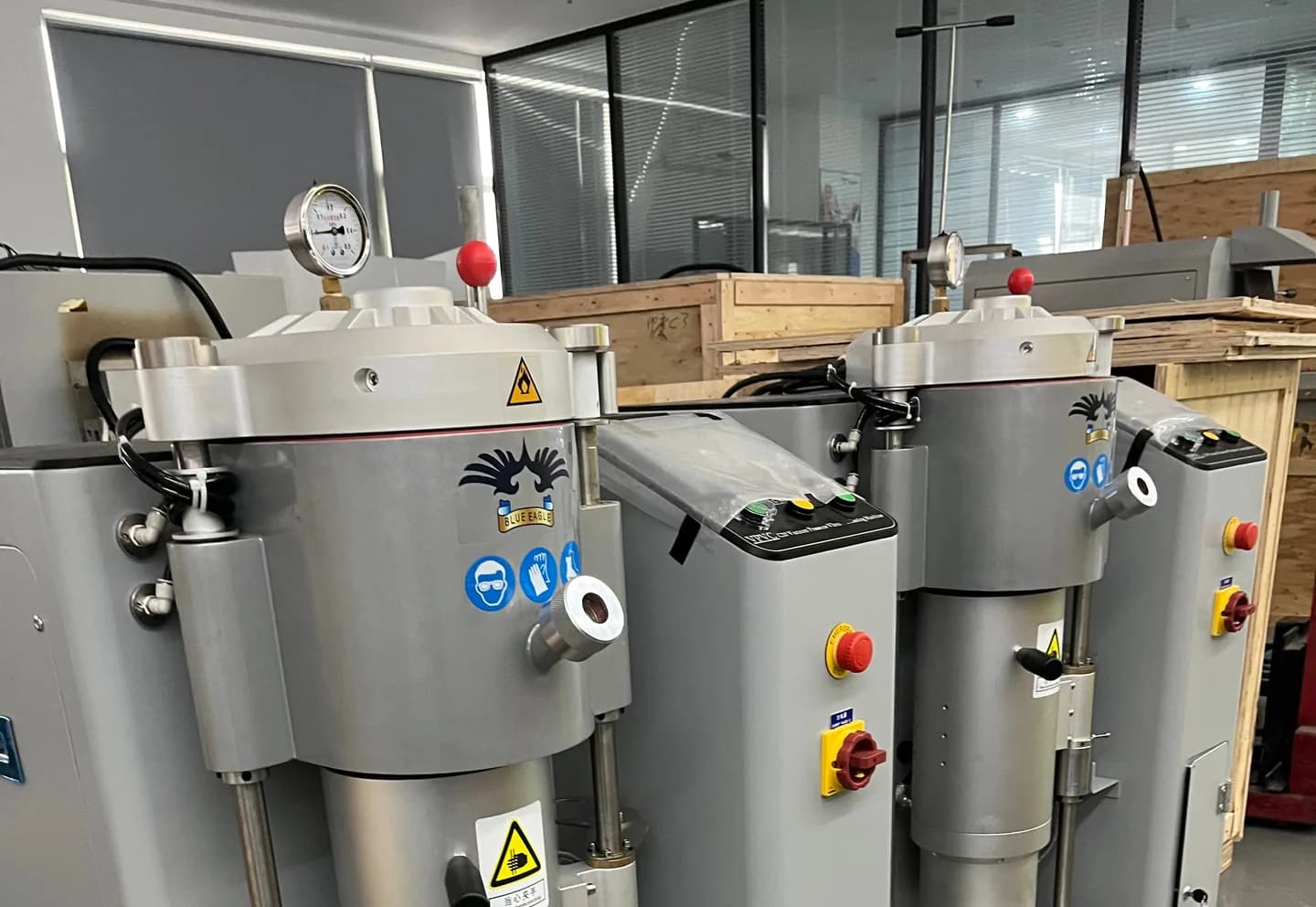

The case came from a jewelry workshop running precious-metal casting with a CXM-C20 Microcomputer Vacuum Pressure Vibratory Casting Machine. The reported symptom was not classic catastrophic porosity. Instead, the workshop saw a softer reproduction of details after humid storage conditions: small letters looked less crisp, edge roll-off increased, and light claw structures needed more finishing work.
That detail matters. In jewelry casting, humid conditions can degrade mold-related stability before teams see a dramatic machine fault. As a technical reference point, jewelry investment materials are hygroscopic, which means moisture control and storage discipline matter directly to mold quality. In practice, after-sales troubleshooting often finds a stacked pattern: opened material mixed back into fresh stock, startup timing drift between operators, and premature machine adjustments after the first weak lot.
What the team changed first
1) They stopped treating the issue as a machine fault by default
The workshop did not begin by raising temperature, extending vacuum time, or altering pressure timing. That avoided a common trap: machine changes can temporarily hide the signal while leaving the upstream cause untouched.
2) They created a startup gate for one geometry family
For the recovery window, the team locked:
- one investment lot,
- one alloy lot,
- one geometry family with fine detail sensitivity,
- one operator for validation,
- one fixed transfer rhythm.
This removed noise from diagnosis. Instead of debating whether all products were bad, the workshop watched one high-signal part family under controlled startup conditions.
3) They used a two-lot acceptance rule before full release
The key operating change was simple: the workshop would not release full production after one “better-looking” lot. It required two consecutive validation lots under the same discipline. That meant the team could distinguish between a lucky run and a stable recovery.
Why this worked
The recovery logic was grounded in process control, not guesswork. When detail softness appears after humid storage, the root cause can sit upstream in investment condition and startup handling. If the team changes machine parameters too early, it becomes harder to tell whether the improvement came from a real fix or from an unstable overlap of variables.
By holding the machine steady and tightening material/startup discipline first, the workshop created a cleaner diagnostic boundary. That is why the same-shift result was credible: the output improved under controlled repetition, not under a moving target.
Observed result from the service validation window
- Before control: repeated startup complaints about soft logo edges, weak claw definition, and inconsistent acceptance judgment.
- After control: two consecutive validation lots were accepted in the same shift without hardware change.
- Operational outcome: the workshop froze a humid-day startup SOP so later shifts could reuse the same gate instead of restarting diagnosis from memory.
This is a practical case result, not a marketing fantasy. The value was not a vague “better quality” claim. The value was faster same-shift stabilization and a clearer handoff standard for repeat production.
What other workshops can copy
- Do not treat soft detail after humid storage as a hardware problem first.
- Lock one investment lot and one alloy lot during startup diagnosis.
- Use one geometry family with visible detail sensitivity.
- Require two consecutive accepted validation lots before normal release.
- Freeze the rule into a humid-day SOP once repeatability is confirmed.
If your team is seeing soft detail, blurred letters, or edge roll-off after humid conditions, it helps to pair this case with the deeper troubleshooting guide on fine-detail loss after humid storage. For adjacent symptoms, also review humidity-related surface stains and the Jewelry Casting FAQ.
FAQ block
Was the recovery achieved by changing the CXM-C20 hardware?
No. The same-shift recovery in this case came from startup gating, lot discipline, and repeatability checks before hardware or parameter changes.
Why require two accepted lots instead of one?
One improved lot can be accidental. Two consecutive accepted lots under the same conditions provide a stronger signal that the process is stable enough to release.
Is this only relevant in rainy weather?
No. Any humid storage pattern, weekend shutdown, or unstable material-opening discipline can create similar startup softness in fine detail.
