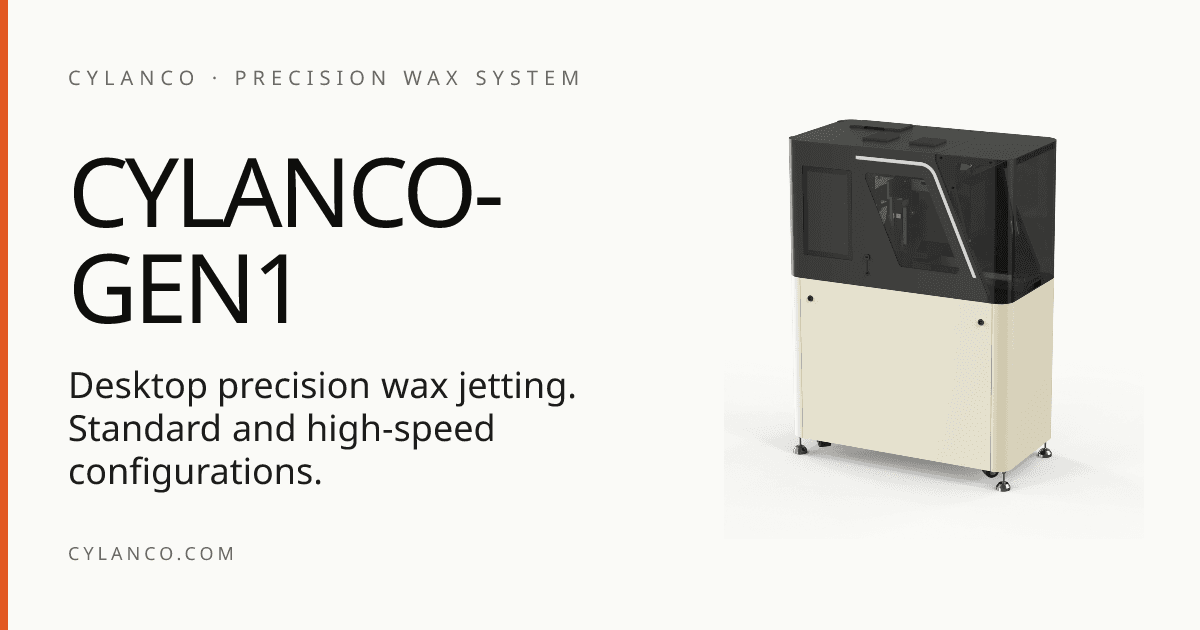

Cylanco-Gen1 brings high-precision wax model production into a focused desktop workstation.
It combines a 235 × 138 × 110 mm build volume, 15 μm layers, clearly published dimensional accuracy, two speed configurations, and a dedicated mobile base included as standard.
Precision, in a more focused format
Cylanco-Gen1 is a single-printhead desktop precision wax jetting system designed around the parameters that matter in day-to-day wax model production.
Its build volume measures 235 × 138 × 110 mm. A 15 μm layer thickness supports fine-layer output, while dimensional accuracy is specified at ±0.04 mm per 20 mm.
No vague performance language. Just the figures teams need to evaluate fit.
Choose the speed configuration around the work
Different workflows place different demands on print speed. Cylanco-Gen1 is therefore available in standard and high-speed configurations.
| Configuration | Single channel | Dual channel |
|---|---|---|
| Standard | 5 mm/h | 2.5 mm/h |
| High-Speed | 7.2 mm/h | 3.6 mm/h |
The published single-channel and dual-channel values make the two configurations easy to compare without relying on generalized throughput claims.
Built as a complete workstation
The dedicated mobile base is included as standard. Integrated casters and leveling feet support practical relocation and secure positioning as production layouts change.
The enclosed build environment and large viewing window support real-time observation, while the compact format keeps the system focused on wax model production.
A clear fit for focused wax model production
Start with the required build volume and precision. Then select the standard or high-speed configuration that matches the intended workflow.
Cylanco-Gen1 does not turn that decision into a vague promise. It gives teams the specifications needed to make it directly.
High-precision wax models. Start with Cylanco.
Cylanco-Gen1 brings together a desktop footprint, clearly stated precision parameters, selectable speed, and a mobile base supplied as standard.
